River
Intelligence.

Solar-powered floating pods deployed in river basins and water bodies. Continuous pH, TDS, turbidity and temperature data — streamed live via 4G to your dashboard.

4G
Live Connectivity
Agri
Fish · Prawn · Paddy
Solar
Zero-Grid Power
24/7
Continuous Monitoring

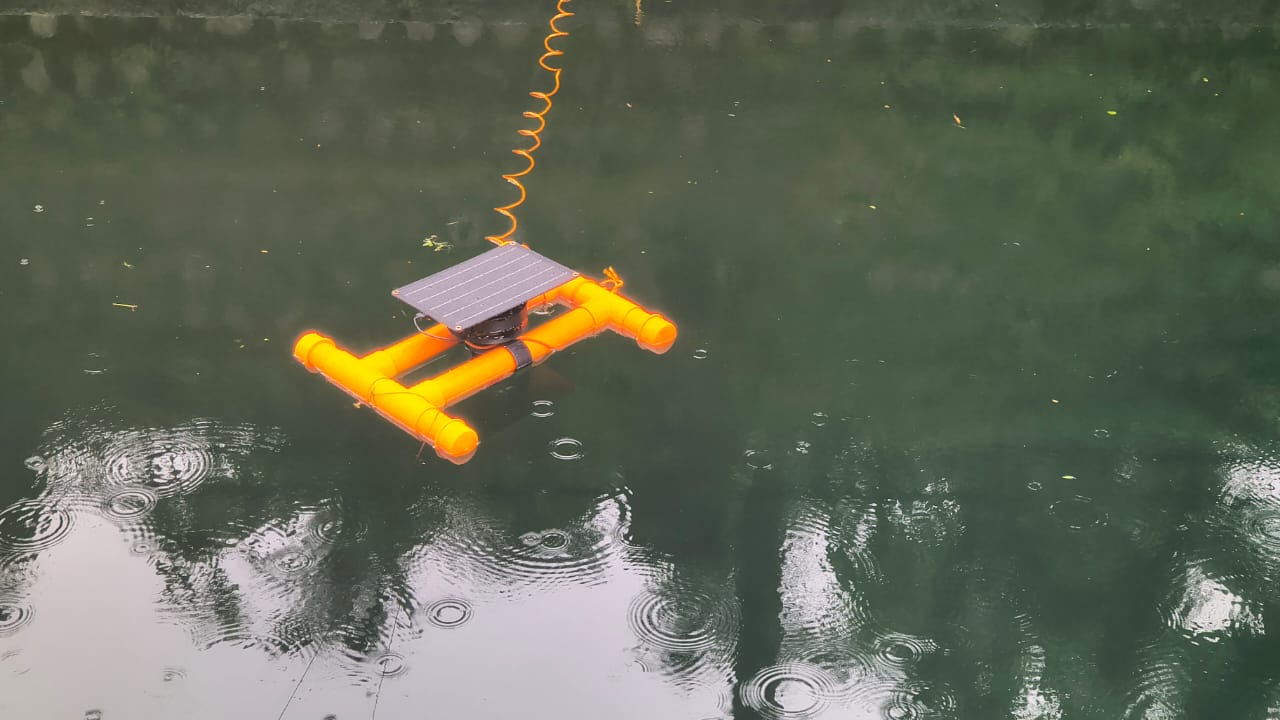

Jalio water monitoring pod floating on water
Live Reading
pH 7.2
Deployed · Krishik Incubatee · Udupi
pH Monitoring TDS Analysis Turbidity Detection Water Temperature Dissolved Oxygen Solar Autonomous Power 4G Real-Time Streaming ESP32 Edge Processing River Basin Deployment Custom PCB Design Flask Cloud Dashboard pH Monitoring TDS Analysis Turbidity Detection Water Temperature Dissolved Oxygen Solar Autonomous Power 4G Real-Time Streaming ESP32 Edge Processing River Basin Deployment Custom PCB Design Flask Cloud Dashboard
The Hardware

The Jalio Water Pod

The Jalio pod is built on a buoyant orange PVC pipe frame — rugged, lightweight and entirely self-contained. A waterproof electronics enclosure houses the ESP32 microcontroller, sensor boards, and 4G module, while a solar panel on top keeps the battery charged indefinitely in field conditions.

The design is field-proven — successfully deployed in an open water body during live monsoon conditions, with readings streaming to the cloud dashboard in real-time.

Jalio Technologies is founded by Pranav Bhat and incubated at the Krishik – Agri Business Incubator, UAS Dharwad. The company targets inefficient, manual water quality monitoring in fish, prawn and paddy cultivation — replacing guesswork with real-time IoT intelligence.

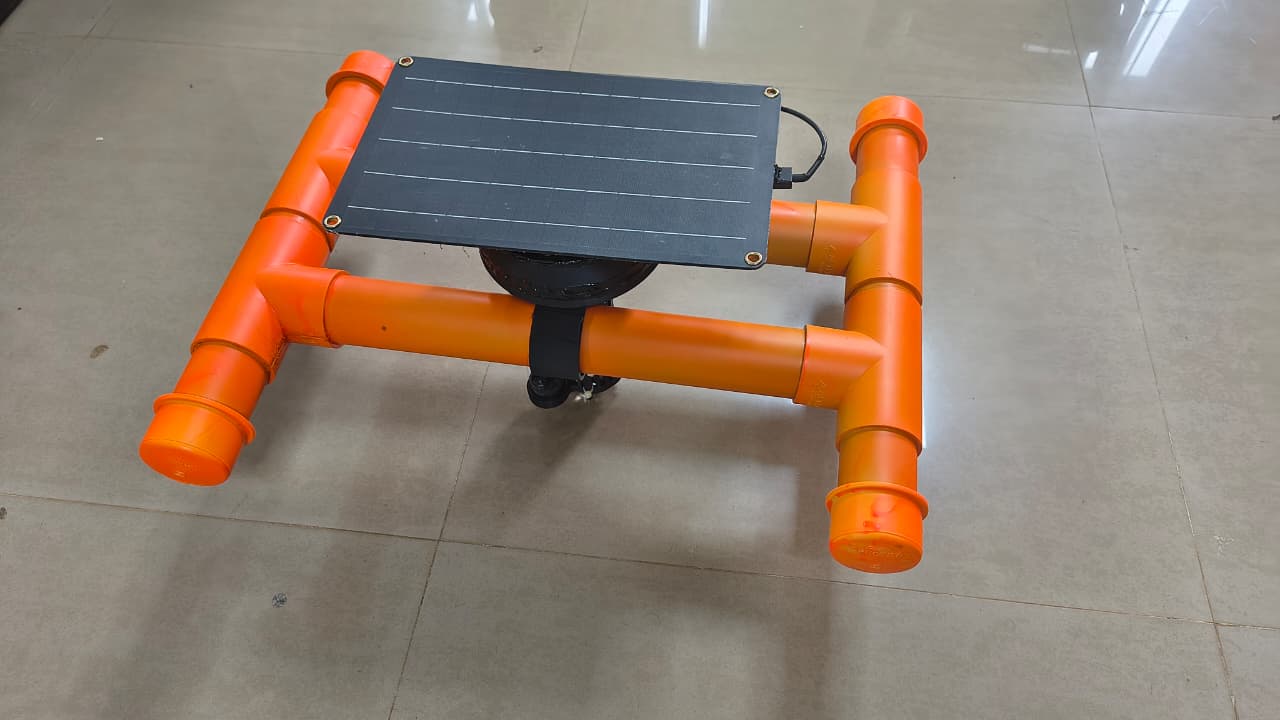

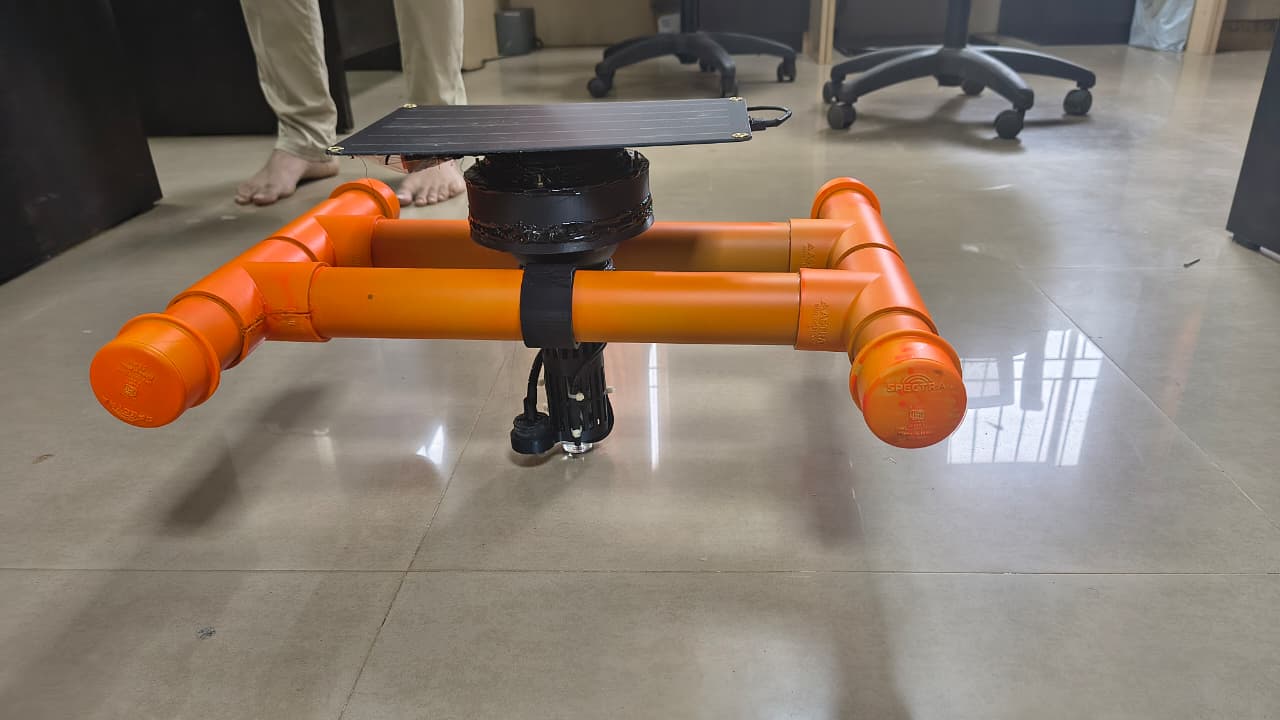

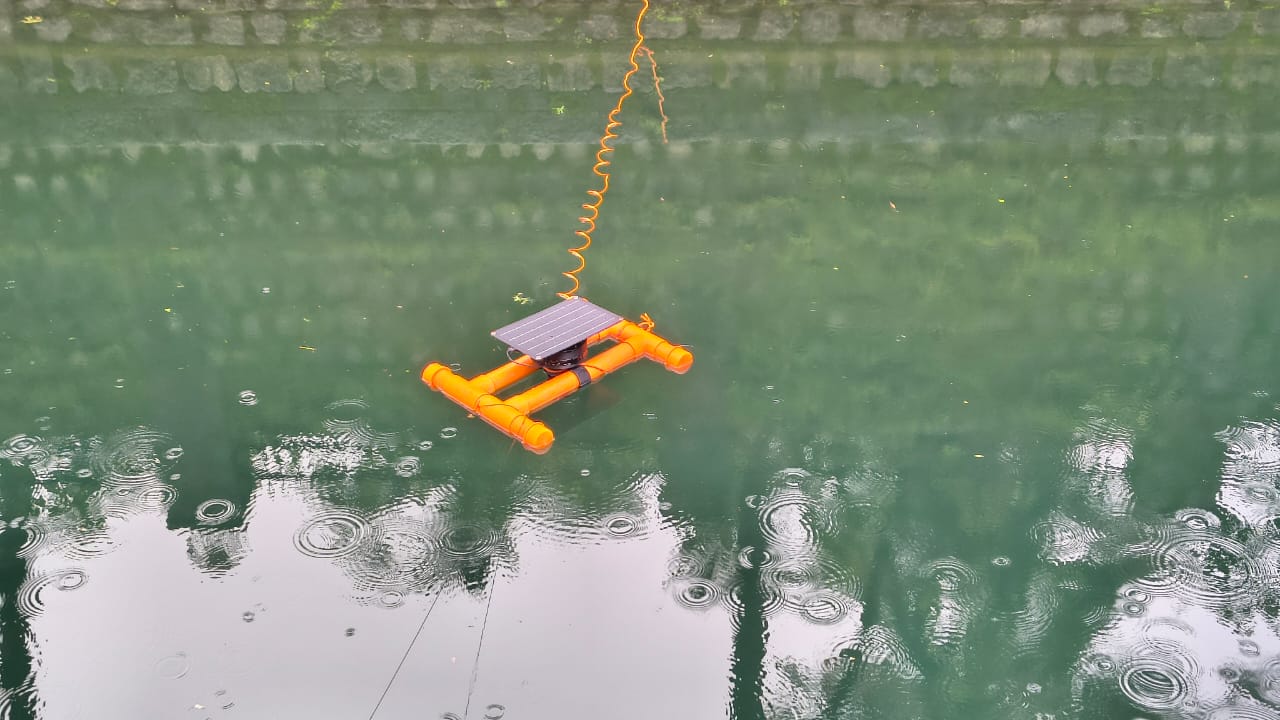

Jalio pod top view showing solar panel and PVC frame Jalio pod front view with waterproof enclosure Jalio pod deployed on water from above
Field Deployment

Tested. In Real Water.

The Jalio pod was deployed in an ancient stone reservoir during active monsoon rainfall — proving waterproof integrity, solar performance in overcast conditions, and real-time 4G data transmission.

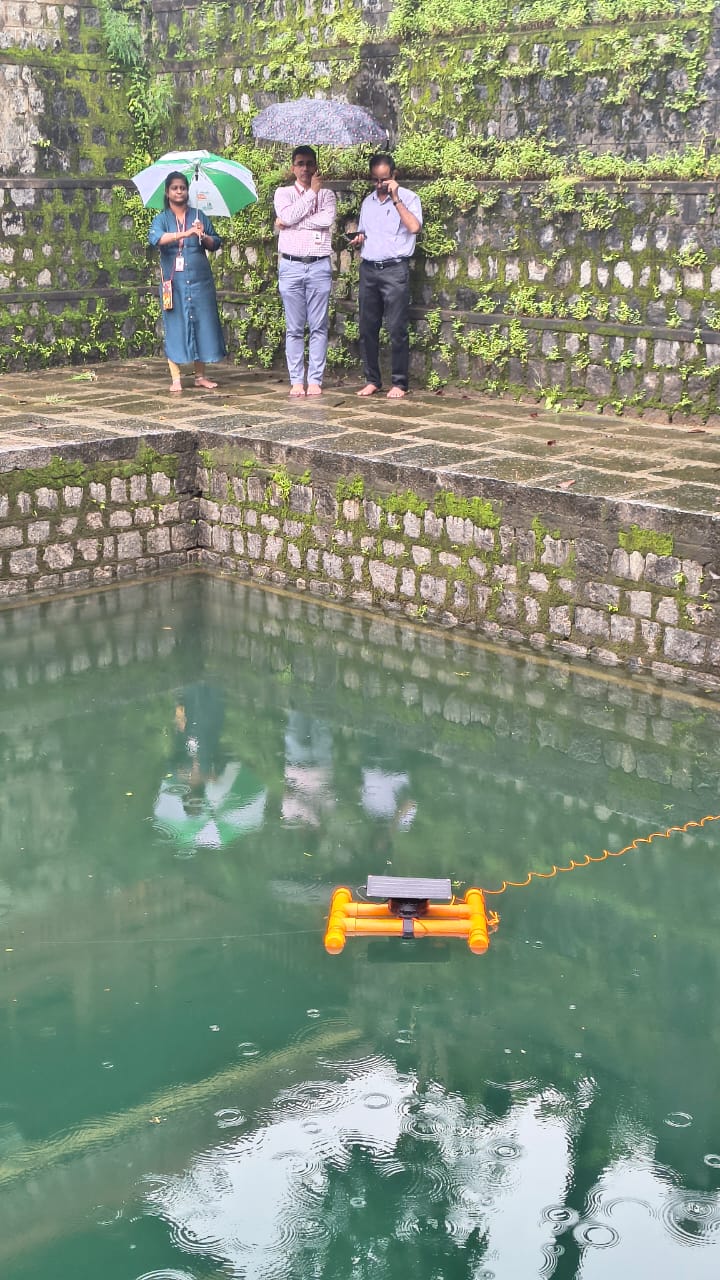

Team observing deployed Jalio pod in stone reservoir
Live field deployment · Heritage reservoir · Monsoon conditions

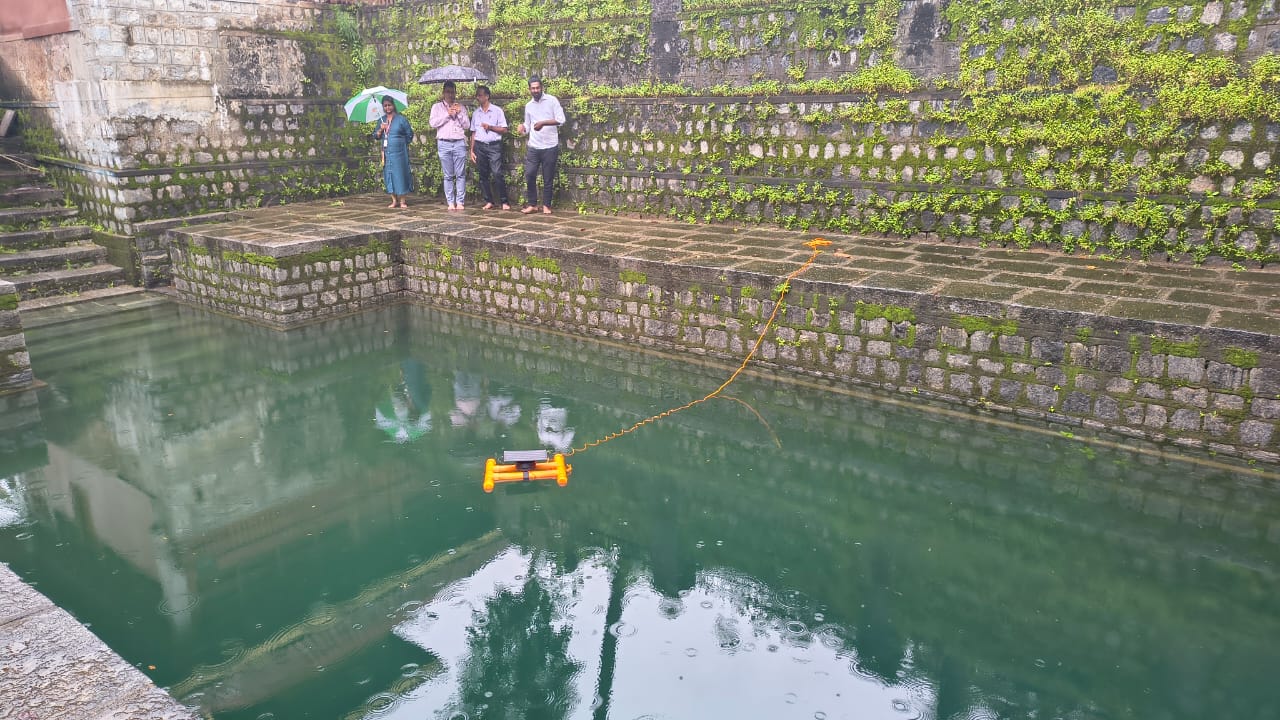

Wide view of Jalio pod deployed in reservoir with team
4G data streaming confirmed · pH 7.0–7.2 · Temp 26–32°C

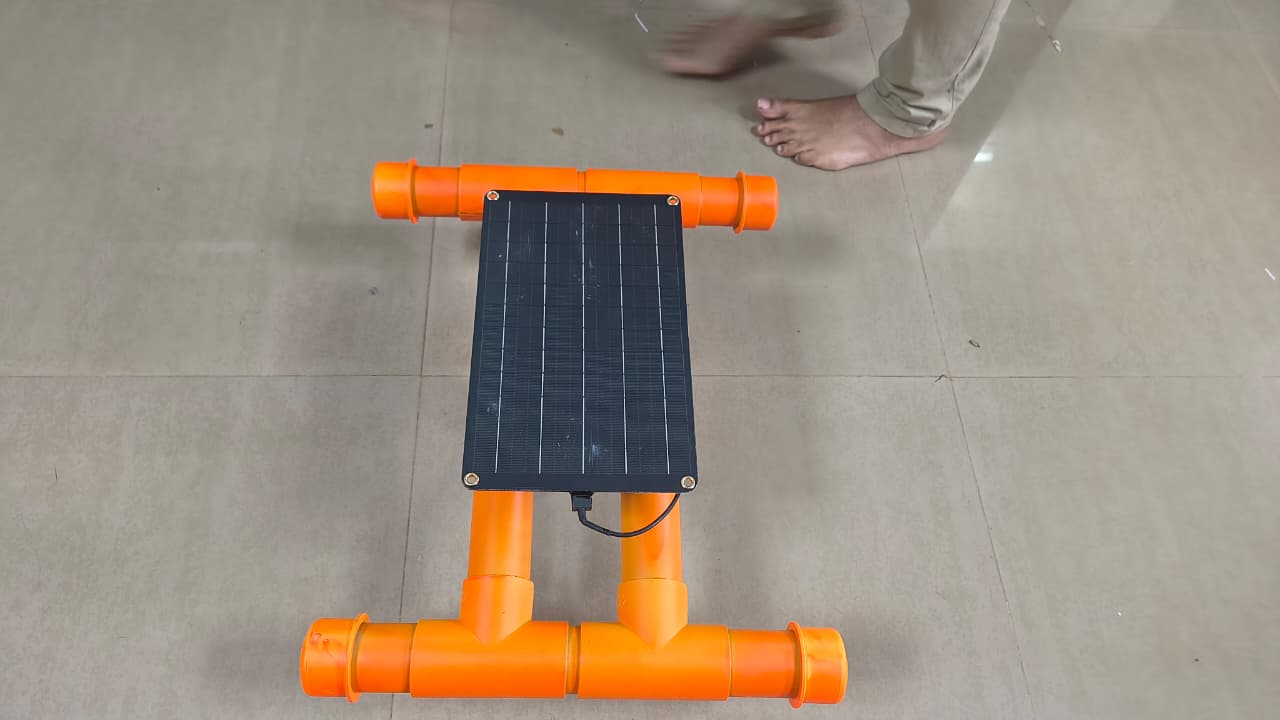

Jalio pod solar panel top view close up
Solar panel providing autonomous power in field conditions
Sensing Layer

What the Pod Measures

pH Sensor
Measures acidity/alkalinity. Formula: −3.0951V² + 5.641V + 7.8516. Calibration applied per buffer solution. Range validated 0–14 in firmware.
Range: 0–14 pH · ±0.1 accuracy · Output: 0–3.0V
TDS Sensor
Total Dissolved Solids via cubic polynomial: 133.42V³ − 255.86V² + 857.39V × 0.5. Phase-switched with pH to prevent interference. Median filtered.
Range: 0–1000 ppm · ±10% FS · Working: 3–6mA
Turbidity
Cloudiness detection using light scatter. Formula: −1120.4V² + 5742.3V − 4352.9 NTU. Field readings: 2396–2874 NTU in tested water body. Digital threshold output available.
Output: 0–4.5V analog · <500ms response · 5V supply
Temperature
DS18B20 digital OneWire sensor with waterproof stainless probe. 4.7kΩ pull-up on PCB. Field readings: 25.1–32°C. Used for dissolved oxygen compensation formula.
Range: −55°C to +125°C · ±0.5°C · Digital OneWire
System Flow

From Water to Dashboard

01
Deploy Pod
Orange PVC buoy placed on water. Probes submerged, electronics sealed in enclosure.
02
Probes Sample
pH, TDS, Turbidity and Temperature probes read continuously.
03
ESP32 Processes
Phase switching, median filter, calibration polynomials, DO calculation — all on-device.
04
4G Transmits
JSON payload POSTed to Python Flask server at /log_data every second via 4G SIM.
05
Dashboard Displays
Real-time charts, metrics, alerts and logs visible on any browser. Data saved to CSV and TXT logs.
Analytics

The Live Dashboard

Python Flask backend receives ESP32 JSON posts and serves a Chart.js dashboard — accessible from any device on the network. Logs written to CSV and dated text files.

jalio-monitor.local:5000 — Water Topography Monitoring System Streaming Live
Navigation
📊 Live Monitor
📈 Trend Charts
🗃️ Data Logs
⚙️ Settings
📡 Device Status
ESP32 Status
ONLINE
dashboard.jaliotechnologies.in
pH Level
7.2
Neutral ✓
TDS
284
ppm
Turbidity
2396
NTU
Temperature
26.3
°C
pH Trend — Real session data from field deployment · Aug 14, 2025
7.4 7.2 7.0 6.8 01:15 01:16 10:57 10:58 NOW pH (actual field data · Aug 14, 2025)
Applications

Where Jalio Deploys

02
Pollution Detection
TDS and turbidity spikes instantly flag industrial effluent discharge events. pH drops confirm acid contamination in real time.
Environmental Compliance
03
Irrigation Intelligence
Agricultural intake points monitored for dissolved solids and pH — preventing mineral buildup in channels and protecting crop yield.
Precision Agriculture
04
Aquaculture Monitoring
Fish farms depend on tight pH and DO windows. Jalio pods maintain 24/7 watch, alerting before stress conditions affect stock.
Fisheries
05
Drinking Water Safety
Municipal intake stations monitored for contamination. Automated threshold alerts integrate with water treatment SCADA systems.
Public Health
06
Research & Hydrology
Distributed pod networks give researchers spatial water quality datasets across entire river basins for climate and ecosystem studies.
Academic & Government
Get Started

Deploy in
Your River.

Request a pilot deployment for your fish farm, prawn pond, paddy field or water body. Pranav and the Jalio team will design the monitoring network for your needs.
